Einführung in Maple
Übungen


Die Addition von Vektoren

> restart; with(plots):
  fnt:= 'font = [COURIER, 12]':

Definition der Objekte Q1, Q2, v1, v2 und v3;
Zeichnen dieser Objekte in Parallelprojektion:

> Q1:= plottools[cuboid] ([0,0,0], [1,4,3],
    color = blue,
    thickness = 1):
  Q2:= plottools[cuboid] ([1,4,3], [3,7,5],
    color = maroon,
    thickness = 1):
  v1:= arrow  (<0,0,0>, <1,4,3>, fnt,
    shape = arrow,
    color = black,
    thickness = 2):
  v2:= arrow  (<1,4,3>, <2,3,2>,
    shape = arrow,
    color = red,
    thickness = 2):
  v3:= arrow  (<0,0,0>, <3,7,5>,
    shape = arrow,
    color = magenta,
    head_length = 1,
    thickness = 2):

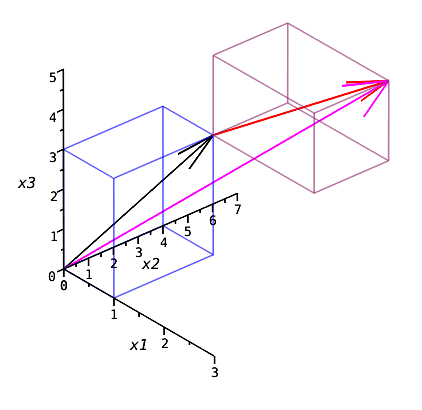

  display([v1, v2, v3, Q1, Q2],
    style = wireframe,
    thickness = 2,
    axes = normal,
    labels = [x1, x2, x3],
    orientation = [-41, 60]);

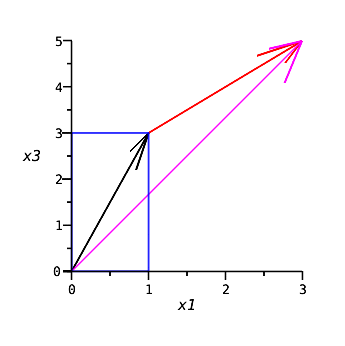

> display([v1, v2, v3, Q1],
    style = wireframe,
    thickness = 2,
    axes = normal,
    labels = [x1, x2, x3],
    orientation = [-90, 90]);
